proj.2024-May-08

visualizations

low-speed

[4k] [hd]

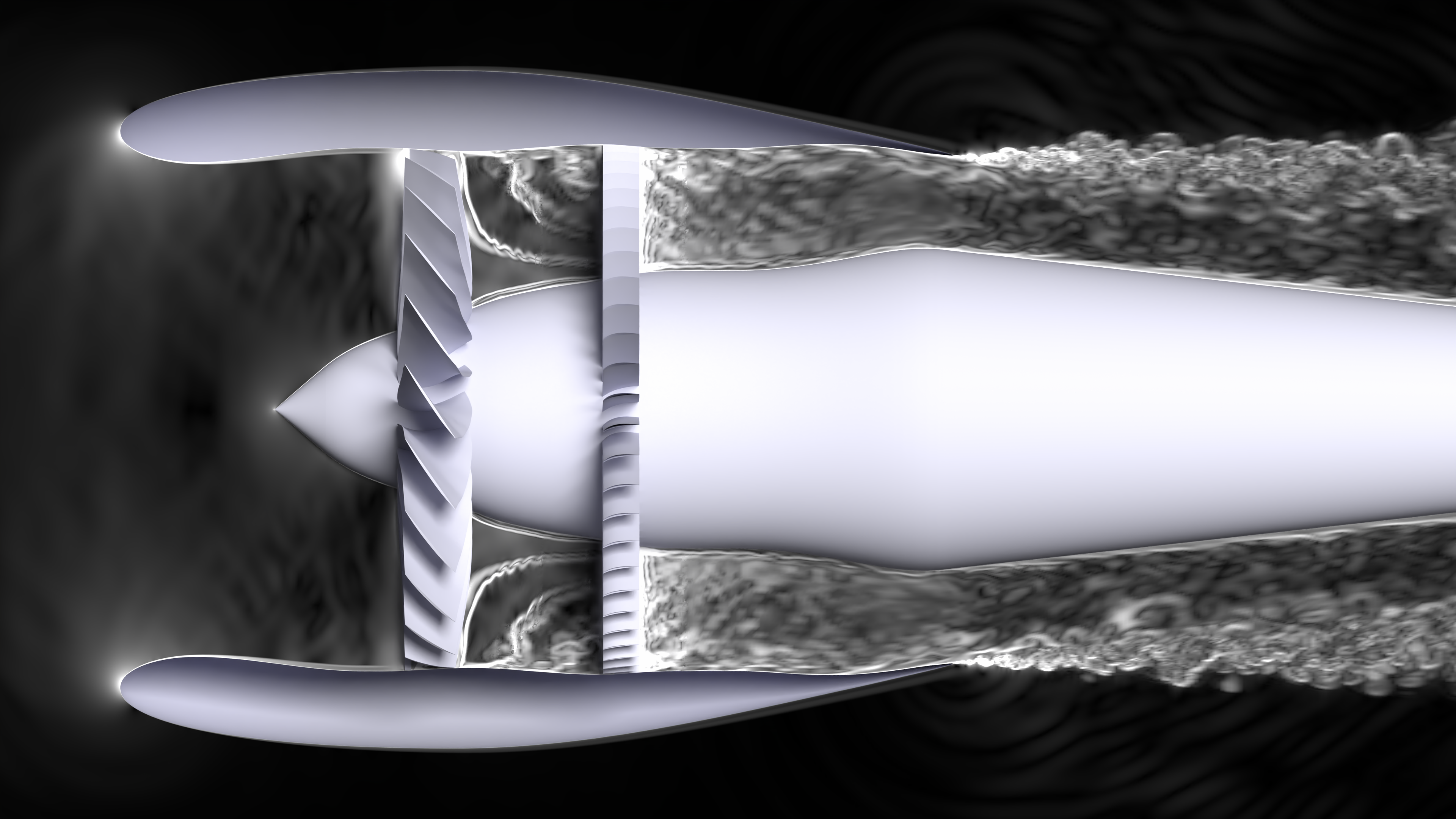

  • low-speed case
  • cut-plane colored by |grad(rho)|
    • scalar range: [ 0 .. 10 ]
  • note: 2x speed
[4k] [hd]
  • lo-speed case
  • particles colored colored by |V|
    • scalar range: [ 92 .. 167 ]
  • iso of q-criterion, colored by |vort|
    • scalar range: [ 2000 .. 20000 ]
  • cutplane colored by dpdt
    • scalar range: [ -0.025 .. 0.025 ]

high-speed

[4k] [hd]
  • high-speed case
  • cut-plane colored by |grad(rho)|
    • scalar range: [ 0 .. 20 ]
  • note: 2x speed

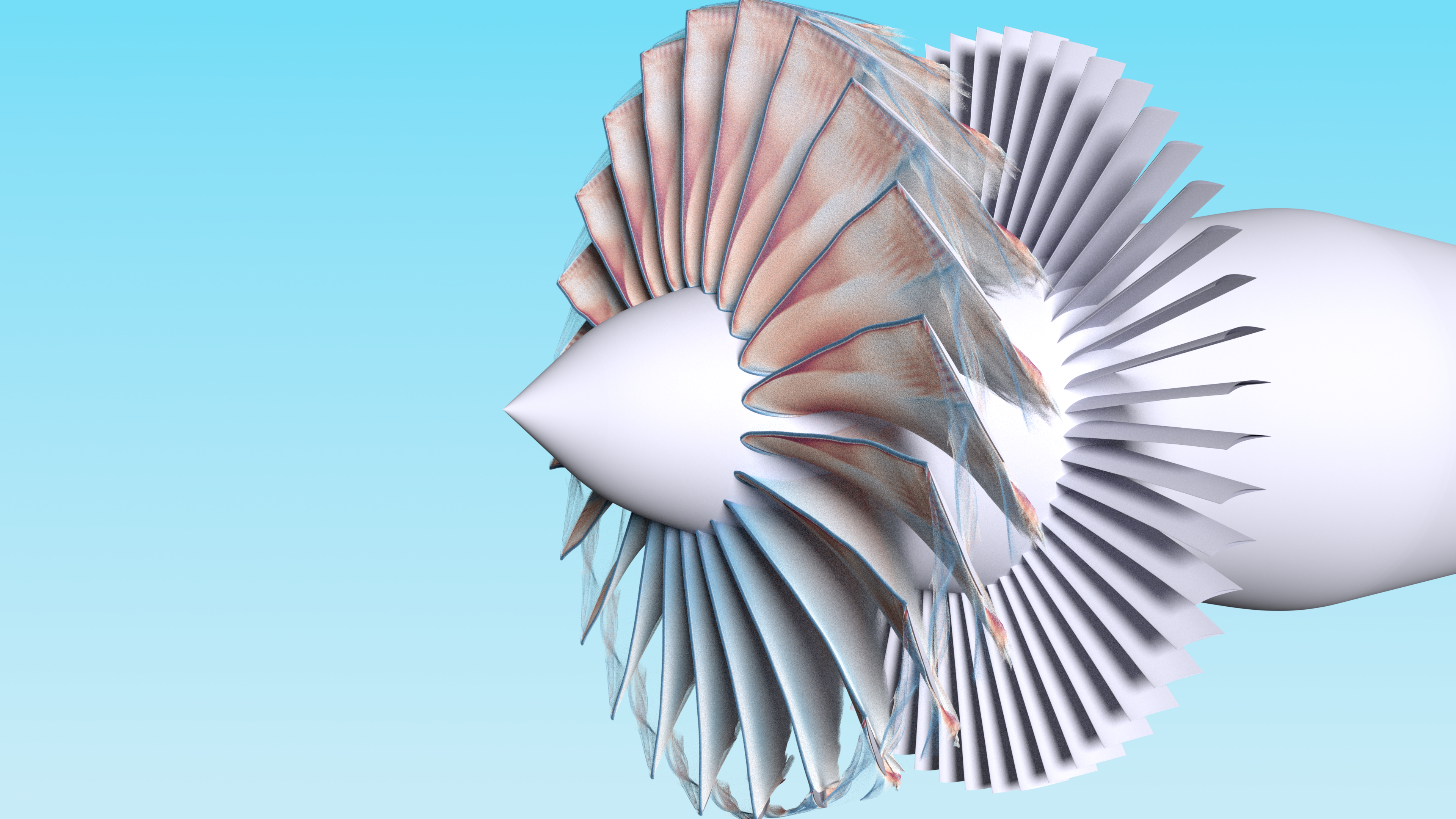

[4k] [hd]
  • high-speed case
  • particles colored colored by |V|
    • scalar range: [ 155 .. 283 ]
  • iso of q-criterion, colored by |vort|
    • scalar range: [ 2000 .. 40000 ]
  • cutplane colored by dpdt
    • scalar range: [ -0.05 .. 0.05 ]

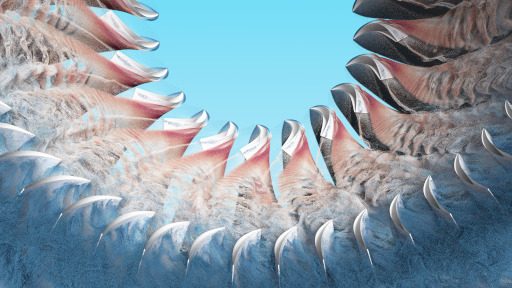

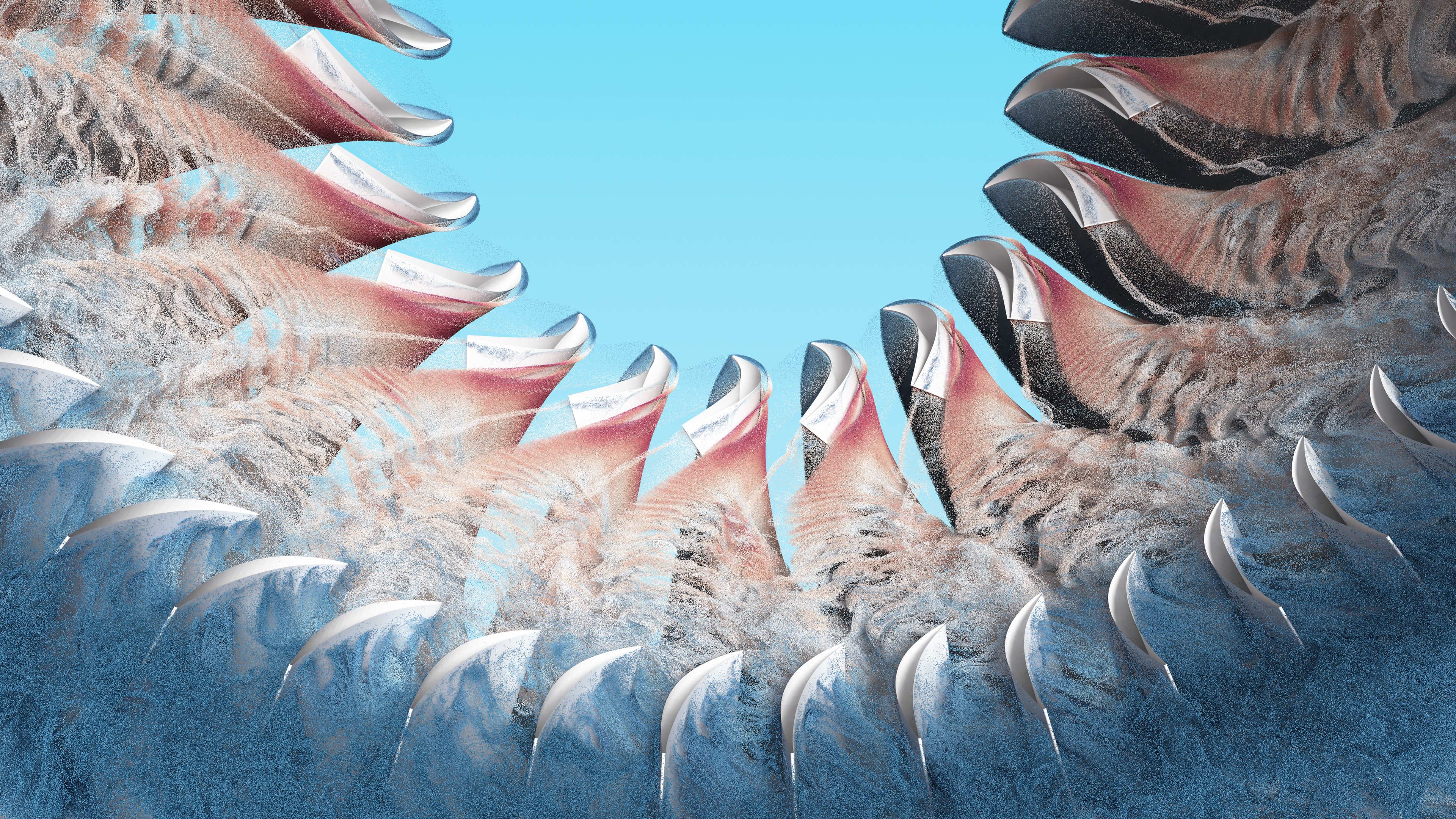

[4k] [hd]
  • high-speed case
  • particles colored by |V|
    • scalar range: [ 155 .. 283 ]
